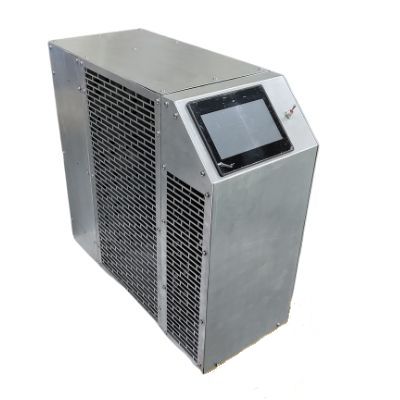

R58 Series Load Bank
The model ULB-R58 is an ultra compact 58kW portable suitcase type load bank for testing data centers, generators, UPS systems, and any other power source. The load bank can be used to test any loads ranging from 0-58kW at specified voltages from the 12/24/48/72/96/120/144 VDC offered.
- Technical Details
- Physical Specifications & Inbuilt Safety
- Features & Benefits
- Options
- Applications
- Downloads
Technical Details
Load Bank
R58 Series, Self Contained, Suitcase type, Compact Portable Load Bank
Load Bank Type
DC Resistive
Load Rating
12 VDC, 1200 Amps, 14.4kW
24 VDC, 2400 Amps, 57.6kW
48 VDC, 1200 Amps, 57.6kW
72 VDC, 800 Amps, 57.6kW
96 VDC, 400 Amps, 38.4kW
120 VDC, 400 Amps, 48kW
144 VDC, 400 Amps, 57.6kW
Power Factor
1
Install Type
Compact, Suitcase Portable
Duty Cycle
Intermittent Duty
Cooling System
Air Cooled, Horizontal Airflow
Physical Specifications & Inbuilt Safety
Enclosure
Aluminum
Environmental Rating
NEMA Type 1
Approx. Dimensions
11 W x 27 D x 18 H (inches)
28 W x 68.5 D x 46 H (cm)
Approx. Weight
60 Lbs / 27 Kgs
Inbuilt Safety Features
- Cooling-air loss protection
- Over-temperature protection
- Internal Fuses for Resistive load element groups
Features & Benefits
- Manual Control, Touch Screen HMI/PLC conrol, Load Selection thru HMI
- Color coded Cam Locks – Ease of Cable Connections & No special tools required
- Powder Coating – Corrosion Prevention and Durability
- Lifting Handles, Carrying Case with wheels – Easily movable by one person
- Numerous Safeties – Superior protection of Load Bank / Reliability
- Nichrome “HeliCon” load elements, supported by Mica sheets – Reliability and Extend Life
Applications
- Data Center / Colocation etc
- Generators
- UPS
