> RM-24 Series Load Bank

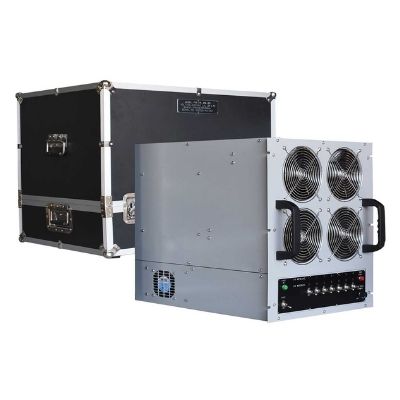

The Universal Load Banks model ULB-RM24 is an ultra compact 24 KW portable rack mounted load bank for testing data centers, stand-by generators, UPS systems etc.

RM-24 Series Load Bank

  • AC
  • Compact
  • Resistive
  • 24kW
  • 415 VAC / 240 VAC / 208 VAC
  • 50 HZ / 60 HZ

The model ULB-RM24 is an ultra compact 24kW portable rack mounted load bank for testing data centers, stand-by generators, UPS systems, and any other power source. The load bank can be used to test any loads ranging from 1.5kW – 24kW at 415/240/208 V.

Contact Sales
  • Technical Details
  • Physical Specifications & Inbuilt Safety
  • Features & Benefits
  • Options
  • Applications
  • Downloads

Technical Details

Load Bank

RM-24 Series, Self Contained, Ultra Compact Rack Mounted, Portable Load Bank

Load Bank Type

AC Resistive

Load Rating

Rating: 24kW, Voltage: 240 VAC, Phase: 1 phase, Frequency: 50/60 Hz, Load Step Resolution: 2 KW/Ph.
Rating: 18kW, Voltage: 208 VAC, Phase: 1 phase, Frequency: 50/60 Hz, Load Step Resolution: 1.5 KW/Ph.
Rating: 24kW, Voltage: 248 VAC, Phase: 3 phase (Delta), Frequency: 50/60 Hz, Load Step Resolution: 12 KW/3 Ph.
Rating: 18kW, Voltage: 208 VAC, Phase: 3 phase (Delta), Frequency: 50/60 Hz, Load Step Resolution: 9 KW/3Ph.
Rating: 24kW, Voltage: 415 VAC, Phase: 3 phase (Wye), Frequency: 50/60 Hz, Load Step Resolution: 12 KW/3Ph.

Power Factor

1

Install Type

Portable, Rack Mounted, Indoor Use

Duty Cycle

Continuous Duty

Cooling System

Water Cooled, Horizontal Airflow

Physical Specifications & Inbuilt Safety

Enclosure

Aluminum

Environmental Rating

NEMA Type 1

Approx. Dimensions

18.85 W x 22.52 D x 21 H (inches)
47.8 W x 57.2 D x 53.3 H (cm)

Approx. Weight

70 Lbs / 32 Kgs

Inbuilt Safety Features

Cooling-air loss protection
Over-temperature protection
Internal Fuses for Resistive load element groups

Features & Benefits

  • Manual Control, 5 Toggle Swathes for Load Selection
  • Color coded Cam Locks – Ease of Cable Connections & No special tools required
  • Powder Coating – Corrosion Prevention and Durability
  • Lifting Handles, Carrying Case with wheels – Easily movable by one person
  • Numerous Safeties – Superior protection of Load Bank / Reliability
  • Nichrome “HeliCon” load elements, supported by SS rods – Reliability and Extend Life
  • Multiple Load Banks can be daisy chained – Larger capacity loading using this features and using multiple smaller capacity load banks

Options

  • Touch Screen HMI/PLC conrol,
  • ∆T Measurement ,
  • KW/V/I measurement (+/-5%FS),
  • 10 ft cable length for hand held touch screen HMI,
  • USB port for Data Logging of Test Data.

Applications

  • Data Center / Colocation etc
  • Back up Generators
  • Telecom
