500kw Liquid Cooled Load Bank

500kw Liquid Cooled Load Bank

  • AC
  • Portable
  • Resistive
  • 500kW
  • 415 VAC / 480 VAC
  • 50 HZ / 60 HZ

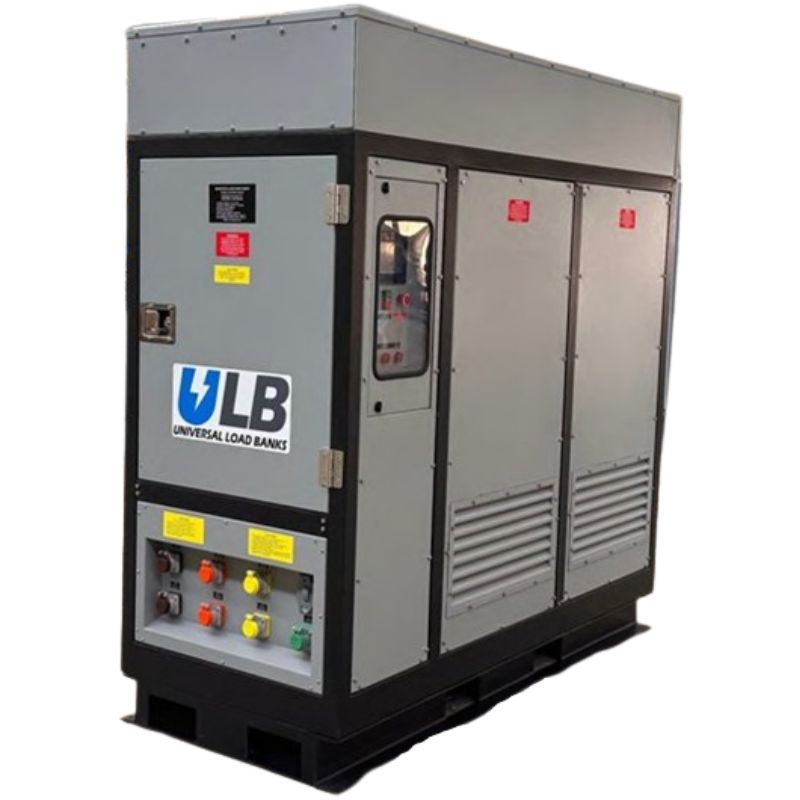

The ULB R500 Liquid Cooled Load Bank is the new standard for power system testing. Providing a full 500 kW at 415V (480V design also available). Designed for continuous indoor or outdoor operation the ULB R500 liquid cooled is the ideal choice for load testing in rugged Service or Rental environments. The slim design and large capacity make this the load bank of choice for Data Center testing.

Reliable operation with proven digital HMI controls makes the R500 Liquid Cooled the perfect solution for comprehensive load testing in Mission Critical and other power source applications.

Contact Sales
  • Technical Details
  • Physical Specifications & Inbuilt Safety
  • Features & Benefits
  • Options
  • Applications
  • Downloads

Technical Details

Load Bank

R500 LCLB Series, Self-Contained, Indoor/Outdoor Portable Load Bank

Load Bank Type

AC Resistive

Load Rating

500kW at 415 VAC.

500kW at 480 VAC.

Power Factor

1

Install Type

Portable, Indoor Use, Outdoor Use

Duty Cycle

Continuous Duty

Cooling System

Liquid Cooled

Physical Specifications & Inbuilt Safety

Enclosure

Steel Powder coated

Environmental Rating

NEMA Type 3R

Approx. Dimensions

35 W x 81 D x 82 H (inches)
88 W x 205 D x 209 H (cm)

Approx. Weight

2200 Lbs / 1000 Kgs

Inbuilt Safety Features

  • 5kW Load step resolution
  • Over-voltage/under-voltage/voltage Imbalance protection
  • 3 Phase current imbalance protection
  • Low Liquid loss protection
  • Over-temperature protection
  • Internal Fuses for Resistive load element groups

Features & Benefits

  • UL & cUL Listed – Guaranteed Quality
  • Digital Controls using In-built PLC – Ease of Operator use, Profile loading, Data Logging
  • Local HMI Touch screen – Reliable, Ease of operation from one screen
  • Color coded Cam Locks – Ease of Cable Connections & No special tools required.
  • Powder Coating – Corrosion Prevention and Durability
  • Forklift Pockets – Easily movable.
  • Comprehensive Safety Circuits – Superior protection of Load Bank / Reliability
  • Multiple Load Banks can be daisy chained – A networked string of load banks increases over all capacity for testing flexibility

Options

  • Transport Cage
  • Casters
  • Automated Control
  • Certified Drawings
  • Remote Control
  • Special Colors
  • Utility Trailer Mounting

Applications

  • Data Center / Colocation etc.
  • Backup Generators
  • Emergency facilities – Health Care
  • Manufacturing
  • Telecom
  • Banking, Finance and Insurance
  • Service & Rental
