WR Series Liquid Cooled Load Bank
WR Series Liquid Cooled Load Bank
Built for critical power. Driven by innovation. ASME-stamped, UL-listed, zero-leak design — engineered for CDU testing and modern liquid-cooled data center environments.
– 6.7 MWModular Range
Engineered for real thermal emulation, not just dissipation
Conventional load banks dissipate heat. ULB WR Series systems emulate actual server thermal behavior — enabling true CDU validation across the full operating envelope.
Real IT loads. Real thermal behavior.

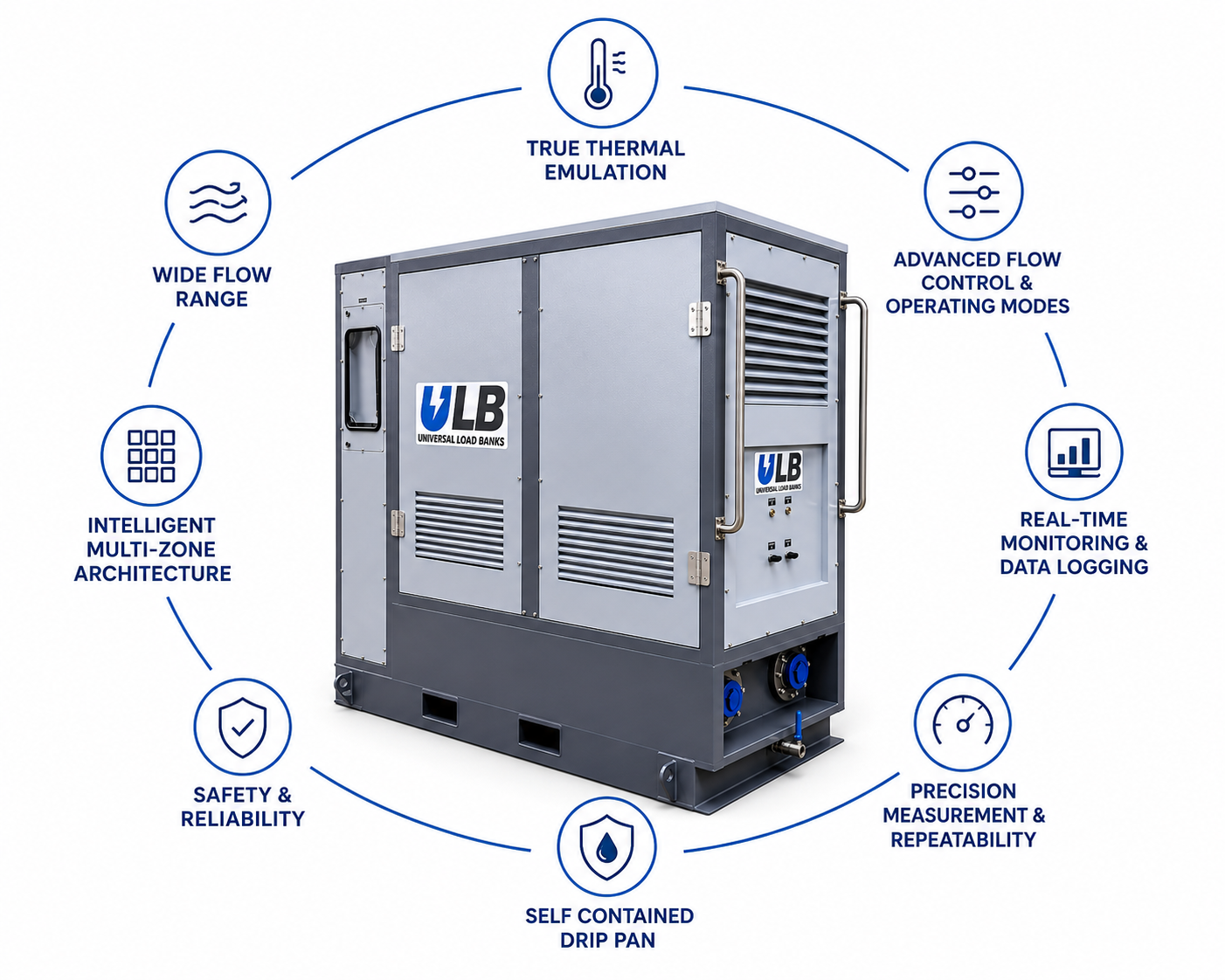

Five capabilities that set the WR Series apart for cooling distribution unit (CDU) validation in modern liquid-cooled data centers.
* LoadEZ™ software license sold separately.
Model-by-Model Spec Sheet
The WR Series comes in three standard models — WR750, WR1125, and MWR2250 — with rated power ranging from 750 kW to 2,250 kW. Larger 3 MW, 4.5 MW, and 6.7 MW configurations are also available on request — please contact sales for specifications.
Where the WR Series delivers
Cooling Distribution Unit Validation
True thermal emulation for liquid-cooled CDU performance testing across the full operating envelope.
Liquid-Cooled Data Hall Commissioning
Multi-zone independent control simulates rack-, row-, and pod-level thermal load distribution.
AI / GPU Workload Emulation
Programmable dynamic load profiles replicate AI-style transient thermal behavior.
Server & Cold Plate Testing
Precise ΔT control for cold plate and direct-to-chip cooling validation.
Liquid-Cooled Power Electronics
Validation of inverters, drives, and high-density power conversion with realistic heat loads.
Extended Validation Programs
Built for safe, unattended operation during long-duration test campaigns.

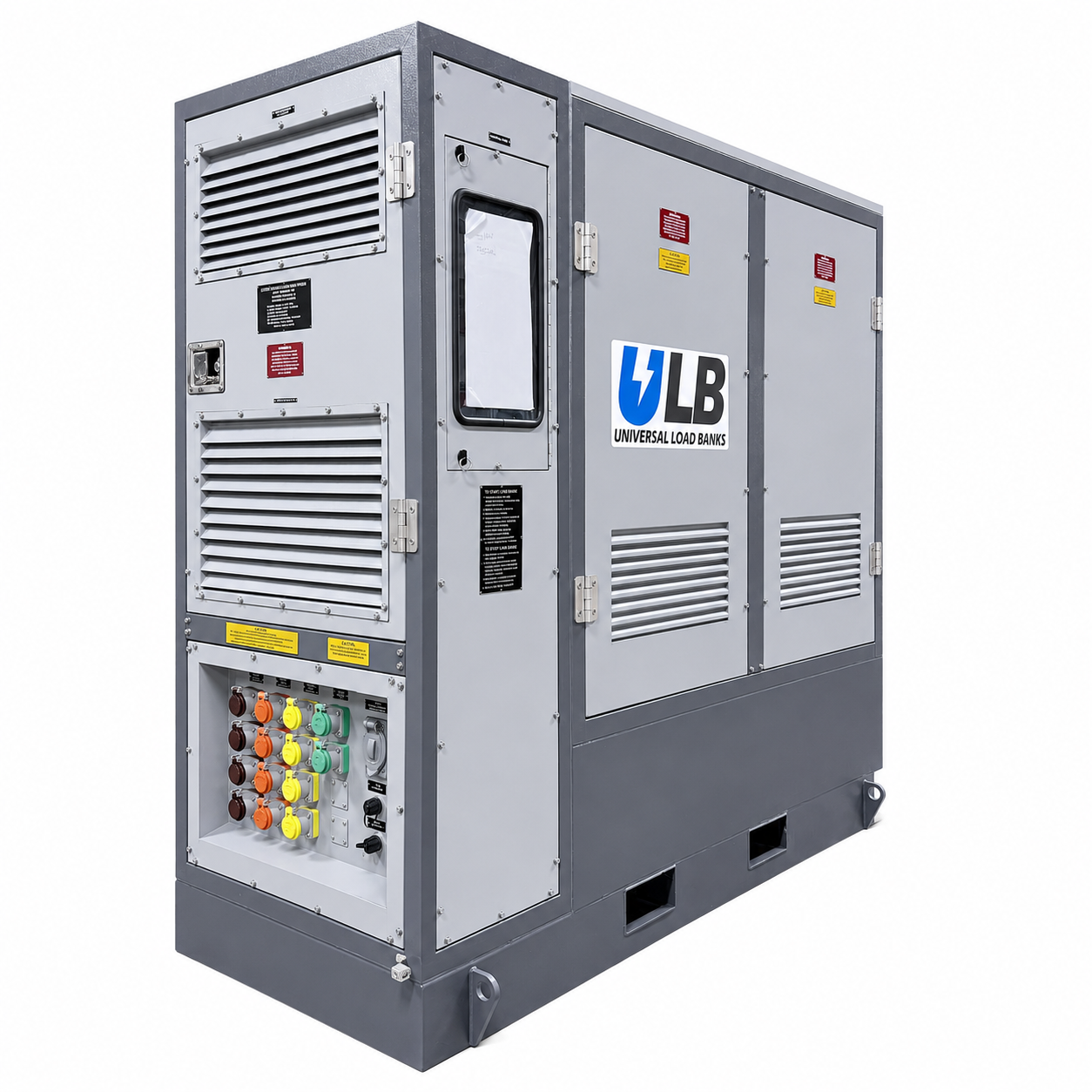

A closer look at the WR Series

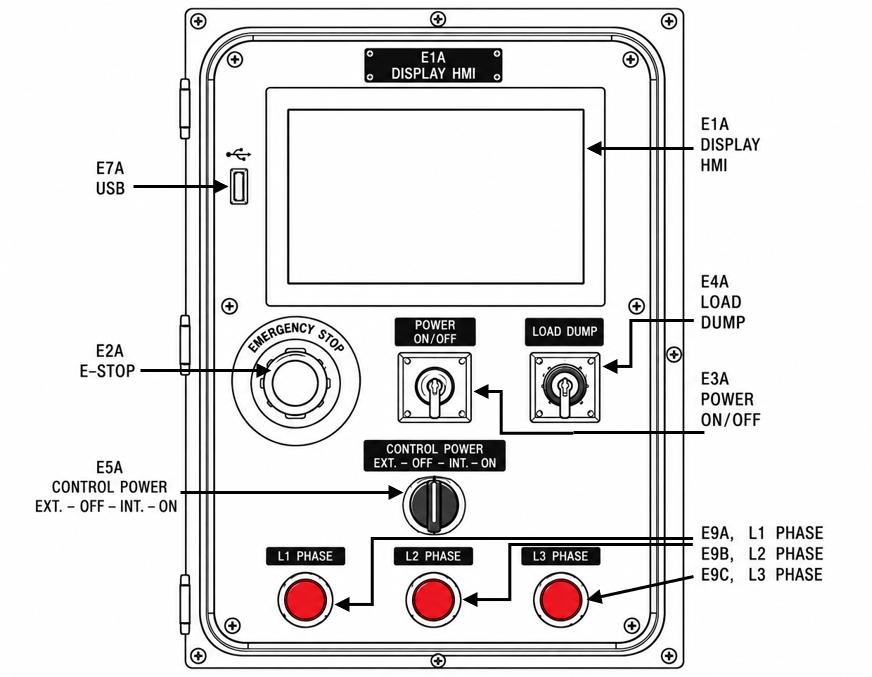

Purpose-built connections and an intuitive control interface — engineered for straightforward integration into modern liquid-cooled data centers and CDU test benches.
Take the details with you
Download the WR Series outline for a quick overview, or the full datasheet for model-by-model specifications.
Product Outline
One-page WR Series technical summary — models, key capabilities, applications.
Full Datasheet
Complete 4-page WR Series datasheet with model-by-model specifications, controls, sensors, and certifications.
Questions about the WR Series
Common questions from CDU manufacturers, data center commissioning teams, and R&D engineers.
What’s the difference between a conventional load bank and the ULB WR Series for CDU testing?
Conventional load banks dissipate heat. The WR Series emulates actual server thermal behavior — making it suitable for true CDU performance validation, not just thermal stress testing.
What power range does the WR Series cover?
The modular range is 500 kW to 6.7 MW. Core models are WR750 (750 kW), WR1125 (1,125 kW), and MWR2250 (2,250 kW). Larger configurations of 3 MW, 4.5 MW, and 6.7 MW are also available.
What flow rates are supported?
Flow rates from 10 to 4,500 LPM are supported across the WR Series, with both fixed-flow and variable-flow testing modes.
How safe is the WR Series for unattended operation?
Designed for safe, unattended operation during extended validation programs. Safety features include leak detection with automatic shutdown, integral self-contained drip pan, over-temperature protection, low-flow and pressure monitoring, and pre-test diagnostics.
What certifications does the WR Series carry?
ASME Stamped, UL / ETL / cUL Listed. Manufactured in an ISO 9001:2015 certified facility.
Talk to a ULB Specialist
Get configuration sizing, technical consultation, or a quote for the WR Series. Our specialists respond within one business day.
Get in touch
Choose what works best — our existing contact form, a direct call, or a brochure download to share with your team.
- Technical Details
- Physical Specifications & Inbuilt Safety
- Features & Benefits
- Options
- Applications
- Downloads
Technical Details
Power Factor
1.0
Duty Cycle
Continuous Duty
Cooling System
Liquid Cooled, Water Cooled
